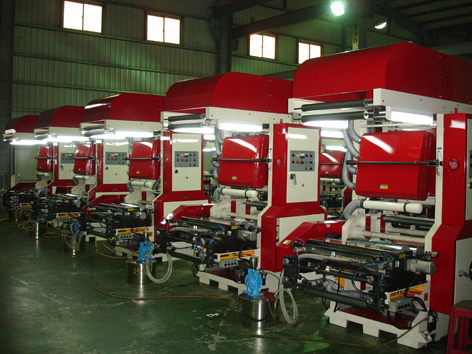

AD series – 2 Colours

Flexographic Printer

2 COLOURS IN-LINE SERIES
MODEL PRINTING WIDTH FILM WIDTH REPEAT
LENGTH
PRINTING
SPEED
M/C DIMENSION
L x W x H
JH/FF-2060AD 600 mm 620 mm 13” – 35” 20~120 M / min 2400 x 1450 x 2485 mm
JH/FF-2080AD 800 mm 820 mm 13” – 35” 20~120 M / min 2400 x 1650 x 2485 mm
JH/FF-20100AD 1000 mm 1020 mm 13” – 35” 20~120 M / min 2400 x 1850 x 2485 mm
JH/FF-20125AD 1250 mm 1270 mm 13” – 35” 20~120 M / min 2400 x 2100 x 2485 mm
JH/FF-20150AD 1500 mm 1520 mm 13” – 35” 20~110 M / min 2400 x 2350 x 2485 mm
JH/FF-20160AD 1600 mm 1620 mm 13” – 35” 20~110 M / min 2400 x 2450 x 2485 mm
FC-25 cast iron machine frame, vibration-free at high speed operation.
Driven by timing belt, quiet and precise.
Simple register device for accurate printing quality, each color adjusted separately during operation.
The perfect facility of drying system can be operated at high speed and be available for water-base ink.
Economical type doctor blade chamber system with ceramic anilox roller, which is able to advance the printing quality and printing speed.

SPECIFICATION FOR REFERENCE ONLY

WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
