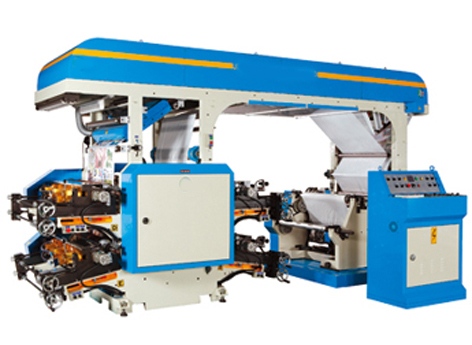

BD series – 4 Colours

Flexographic Printer

4 COLOURS OFF-LINE SERIES
MODEL PRINTING WIDTH FILM WIDTH REPEAT
LENGTH
PRINTING
SPEED
M/C DIMENSION
L x W x H
JH/FF-4060BD 600 mm 620 mm 13” – 35” 20~120 M / min 4985 x 2475 x 2598 mm
JH/FF-4080BD 800 mm 820 mm 13” – 35” 20~120 M / min 4985 x 2675 x 2598 mm
JH/FF-40100BD 1000 mm 1020 mm 13” – 35” 20~120 M / min 4985 x 2875 x 2598 mm
JH/FF-40125BD 1250 mm 1270 mm 13” – 35” 20~120 M / min 4985 x 3125 x 2598 mm
JH/FF-40150BD 1500 mm 1520 mm 13” – 35” 20~110 M / min 4985 x 3375 x 2598 mm
JH/FF-40160BD 1600 mm 1620 mm 13” – 35” 20~110 M / min 4985 x 3475 x 2598 mm
FC-25 cast iron machine frame, vibration-free at high speed operation.
Driven by timing belt, quiet and precise.
Simple register device for accurate printing quality, each color adjusted separately during operation.
The perfect facility of drying system can be operated at high speed and be available for water-base ink.
Economical type doctor blade chamber system with ceramic anilox roller, which is able to advance the printing quality and printing speed.

SPECIFICATION FOR REFERENCE ONLY

WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
