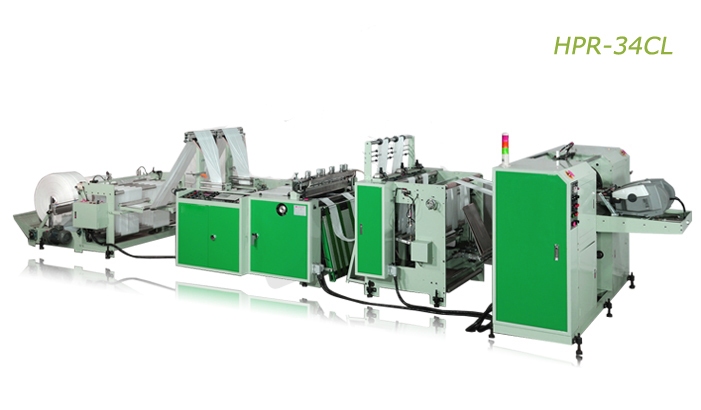

HPR-34CL

Bag Making Machine

MODEL HPR-34CL
Max. Film width 420mmX2 line/850mmX1 line
Max. bag width 300mmX2 line/600mmX1 line
Max. bag length 1500mm
Max. Diameter of the bag roll 130mm
Film thickness 0.01~0.025mm
Production speed 130M/per minute, 150 cycle/per min
Power Required(kw) 6KW
Pneumatic requirement 21/min
Machine dimension (LxWxH) 6500X2500X1650mm



SPECIFICATION FOR REFERENCE ONLY

WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
