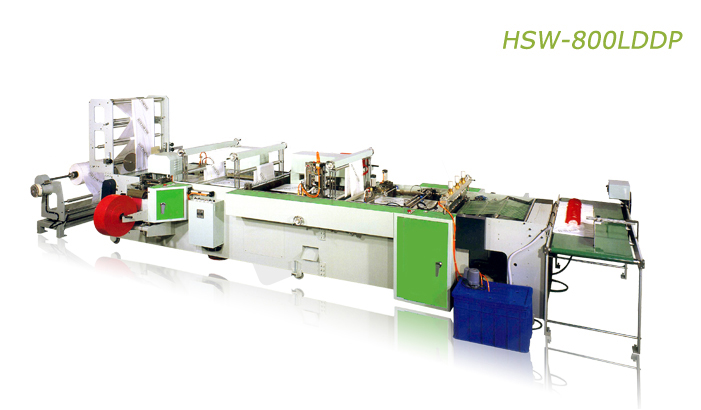

HSW-800LDDP

Bag Making Machine

MODEL HSW-800LDDP
Min. width 250mm
Max. width 650mm
Min. length 250mm
Max. length 650mm
Top Gusset 70-75mm
Bottom Gusset up to 85mm
Max. Production Speed(cycle/min.) 40-80
Thickness of film 0.03-0.09
Heaters 2.6KWx1, 0.8KWx2, 0.3KWx4, 0.4KWx8
Power Required 8.8KW
Machine Dimensions 7600X3200X1850mm
Machine Weight 4000kg
Packing Size 5800X2300X2000mm
Gross Weight 4500kg
Air Compressor (not Included) 7.5HP

SPECIFICATION FOR REFERENCE ONLY

WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
