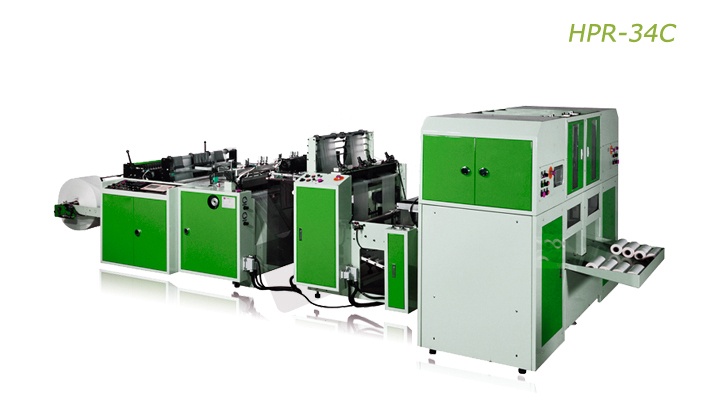

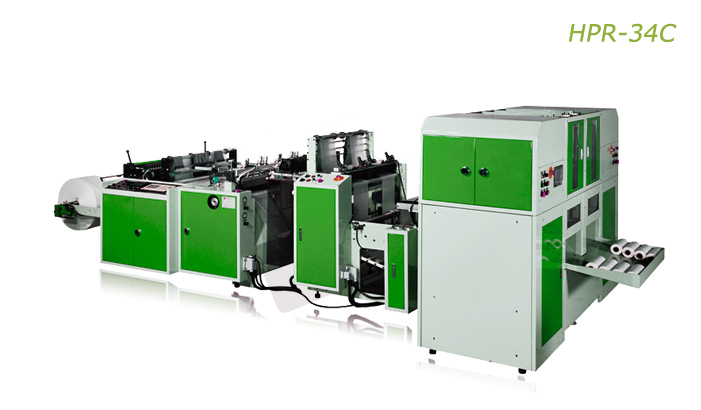

HPR-34C

Bag Making Machine

MODEL HPR-34C

Max. Film width 350mm x 2lines
Max. bag width 300mm x 2lines
Max. bag length 1200mm
Max. Diameter of the bag roll 180mm
Film thickness 0.008~0.035mm
Production speed 100M x 2lines
Power Required(kw) 11KW
Pneumatic requirement 7kg/cm2 , 500L/min
Machine dimension (LxWxH) 5940 x 2390 x 1775mm

SPECIFICATION FOR REFERENCE ONLY

WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
