HDS Series

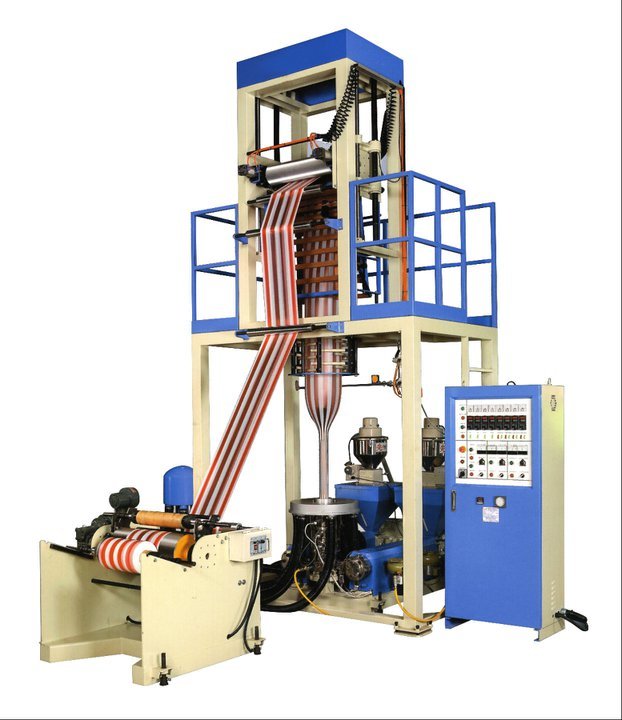

Blown Film Line

  HDS-40/600 HDS-45/800

PRODUCT HDPE
WIDTH OF FILM (MM) 500 MM 700 MM
THICKNESS OF FILM HDPE:0.008~0.04 MM
MAIN PRODUCT 2-COLOR HDPE TUBULAR FILM
MAX EXTRUSION OUTPUT HDPE / 25~30 KGS/HR HDPE / 30~40 KGS/HR
EXTRUDER
TYPE OF EXTRUDER LOW BASE TYPE
MAIN DRIVE MOTOR A.C.10HP+INVERTER A.C.15HP+INVERTER
MATERIAL FC 25
TYPE ONE STAGE SPEED VARIATION TYPE WITH LUBRICATION SYSTEM
GEAR MATERIAL SCM-21 CARBON TREAT & GEAR FACE GROUND
SCREW
SCREW DIAMETER Ø 40 Ø 45
L/D RATIO 26 / 1
MATERIAL OF SCREW SCM-4 NITRIDED AND HARD CHROME PLATED
BARREL
MATERIAL OF SCREW SACM-645 NITRIDED HONED AND POLISHED
AUTO THERMAL CONTROLLER 2 POINTS
HEATING CAPACITY 12 (KW) 14 (KW)
BARREL COOLING WITH BLOWER AIR COOLED
DIE TYPE INFLATION SPIRAL TYPE
DIE HEAD 1 1/2 SET (Ø40 & Ø60) 1 1/2 SET (Ø50 & Ø75)
AUTO THERMAL CONTROLLER 2
HEATING CAPACITY 7.5 (KW)
AIR RING 1 1/2 SET
BUBBLE COOLING BLOWER 3 HP 5 HP
ADAPTOR
SCREEN FILTER Ø40 × 2 Ø45 × 2
AUTO THERMAL CONTROLLER 1
TAKE – UP UNIT
DRIVE MOTOR 1HP AC × 1/10 +INVERTER CONTROL
PINCH ROLLER WIDTH 500 (MM) 750 (MM)
ELEVATION MOTOR 1HP × 1/20 ×1SET
WINDER SURFACE WINDER
WINDING MOTOR 0.3 KG – M 0.3 KG – M
ROLLER DIAMETER Ø250 × 600 MM Ø250 × 800 MM
CONTROL PANEL 1 SET
DIMENSION OF MACHINE (L × W × H) 3900 × 2820 × 4270 4000 × 3020 × 4270
OPTIONAL AIR COMPRESSOR. AUTO LOADER. EMBOSSING ROLLER. SURFACE TREATER. ROTARY DIE DEVIC .IRIS. BUBBLE CONTROLLER



SPECIFICATION FOR REFERENCE ONLY

WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
