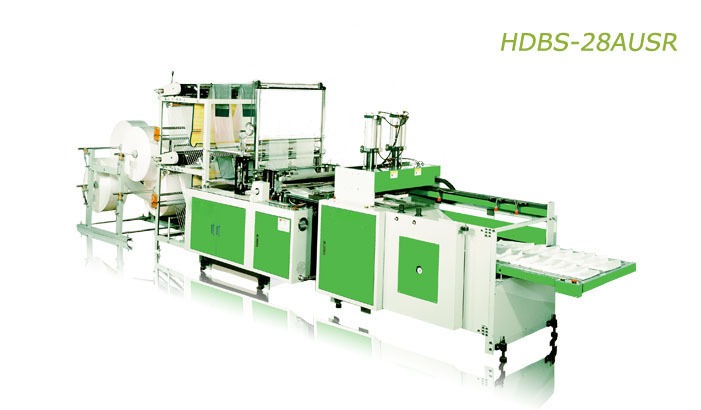

HDBS-28AUSR

Bag Making Machine

MODEL

HDBS-28AU

Max. bag width

700mm(27.6″)X1 line, 340mm(13.4″)X2 line

Max. bag length

T-Shirt bag 700mm,
Bottom Sealing bag 1000mm

Film thickness

0.008~0.15mm

Production speed

40~120 cycle/min./lin

Driving motor(AC)

1HP

Heater capacity

4400w

Electrical requirement

5550w

Machine dimension

5630X1500X1720mm

Packing dimension

2810X1540X2120mm,2970X1303X1697mm

Weight(net/gross)

820/950kgs, 300/500kgs

SPECIFICATION FOR REFERENCE ONLY

WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
