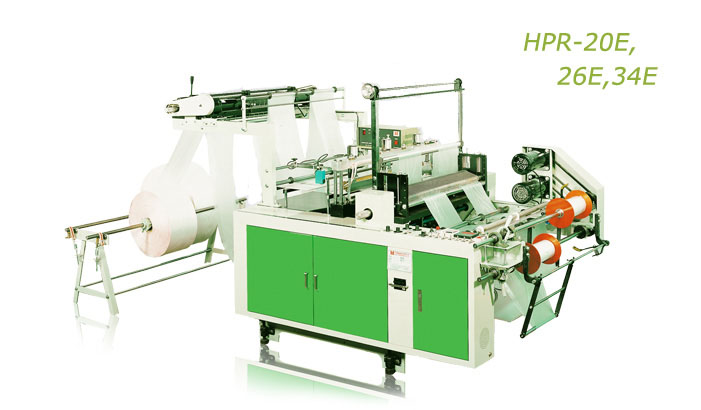

HPR-20E, 26E, 34E

Bag Making Machines

MODEL HPR-20E HPR-26E HPR-34E
Max. bag width 420mm(16.6″)X1 line 280mm(11″)X2 line 520mm(20.5″)X1 line 380mm(15″)X2 line 800mm(31.5″)X1 lline
Max. bag length 600mm(23.7″) 600mm(23.7″) 1200mm(47.30″)
Film thickness 0.008~0.15mm 0.008~1.5mm 0.008~0.15mm
Production speed 40~120 cycle/min./line 40~120 cycle/min./line 40~120 cycle/min./line
Driving motor(AC) 1HP 1HP 2HP
Heater capacity 1000w 1000w 2000w
Electrical requirement 2250w 2250w 4000w
Machine dimension(LxWxH) 2300X1220X1600mm 3200X1350X1600mm 3500X1680X2100mm
Packing dimension(LxWxH) 2420X1450X1600mm 2150X1550X1660mm 2580X1750X1850mm
Gross Weight 560kgs 620kgs 780kgs

SPECIFICATION FOR REFERENCE ONLY

WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
