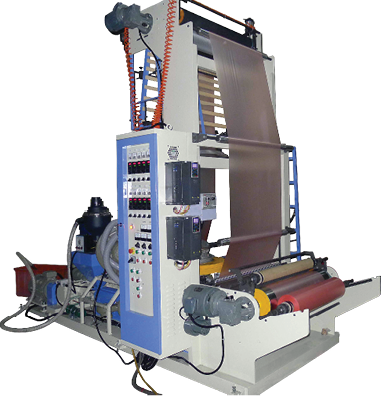

HMB – DL Series

Blown Film Line

Specification:

Model HMB45DL/1000
Production LDPE LLDPE HDPE Tubular film
Width of Film (MM) 850
Thickness of Film 0.008~0.06mm
Extrusion Output( kgs/hr ) LDPE 75~100
HDPE 70~90
Extruder x 2 sets
Type of Extruder LOW BASE TYPE
Main Motor 20HP + inverter
Gear Box Material FC 25
Type With Forced Lubrication System & Cooler
Gear Material SCM-21 Carbon Treat & Gear Face Ground
Screw
Screw Diameter Ø 47
L/D Ratio 30 / 1 ( with two mixing section)
Material SACM-645 Nitrided, Polished and Hard Chrome Plated Hardness
Barrel SACM-645 Nitrided, Honed and Hard Chrome Plated Hardness
Auto Thermal controller 2 zones
Barrel Cooling With Air-Cooling Blower
Die Head
Die Type Spiral Type
Auto Thermal controller 2 zones
Air Ring 1 SET
Bubble Cooling 5HP
Adaptor
Screen Filter Ø50 × 1
Auto Thermal controller 1
Take-up unit
Drive Motor 1HP AC + inverter Control
Pinch Roller Ø160 × 1000 (MM)L
Take Up Tower Tower Height Adjustable
Winder Manual Surface Contact Winder
Winding Motor 0.3 KG – M
Winding Roller 1000 (MM)L
Control panel 1 set
Option
Auto Loader Winder upgraded to 1000mm winding dia.
Embossing Roller Bubble controller
Corona Treater Air Compressor
Hot Knife Level type manual screen changer



SPECIFICATION FOR REFERENCE ONLY

WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
