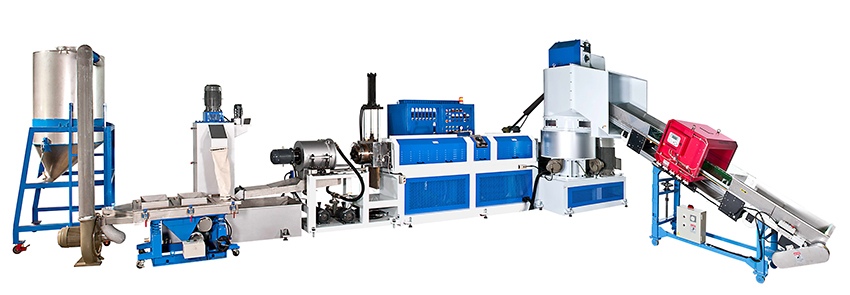

HNTplus Series

Plastic Extrusion and Recycling Line – Tangential type three-in-one plastics recycling plant.

Specifications

MODEL HNTplus-65V HNTplus-85V HNTplus-100V HNTplus-120V HNTplus-150V
MATERIAL LDPE , LLDPE , HDPE , PP , ABS , PS
EXTRUSION OUTPUT PE 100 – 120 KG/HR PE 150 – 250 KG/HR PE 250 – 350 KG/HR PE 400 – 550 KG/HR PE 600 – 800 KG/HR
PP 80 – 120 KG/HR PP 120 – 180 KG/HR PP 200 – 250 KG/HR PP 300 – 450 KG/HR PP 500 – 700 KG/HR
CONVEYOR
DRIVING MOTOR 1/2 HP 1/2 HP 1/2 HP 1 HP 1 HP
SIZE 600 ×3500 MM 600 ×3500 MM 700 ×3500 MM 800 ×4000 MM 900 ×4500 MM
SHREDDING UNIT
DRUM DIA. 650 MM 700 MM 800 MM 900 MM 1000 MM
ROTARY CUTTER 4 PCS 4 PCS 4 PCS 6 PCS 6 PCS
STATIONARY CUTTER 6 PCS 6 PCS 6 PCS 8 PCS 12 PCS
DRIVING MOTOR 30 HP 50 HP 75 HP 100 HP 175 HP
EXTRUDER UNVENT VENT(V) UNVENT VENT(V) UNVENT VENT(V) UNVENT VENT(V) UNVENT VENT(V)
SCREW 65 85 100 120 150
L/D 20 28 20 28 20 28 20 28 20 30
BARREL HEATING ZONE 2 3 2 4 3 6 4 6 6 6
DRIVING MOTOR 40 HP 60 HP 100 HP 125 HP 250 HP
HEATER CAPACITY 12 KW 26 KW 16 KW 32 KW 24 KW 48 KW 32 KW 64 KW 50 KW 75 KW
SCREEN CHANGER HYDRAULIC SYSTEM WITH PRESSURE GAUGE NON-STOP CONTINUOUS TYPE
FILTER DIAMETER 150 MM 200 MM 200 MM 220 MM 280 MM
DRIVING MOTOR 3 HP 3 HP 3 HP 5 HP 5 HP
DIE HEAD CUTTER DEVICE
HEATING ZONE 2 2 2 2 2
HEATING CAPACITY 4 KW 6 KW 8 KW 9 KW 10 KW
DIE HOLES 16 & 24 20 & 40 40 & 80 50 & 100 70 & 100
HOLE DIAMETER 2.5 MM & 2.8 MM 2.5 MM & 2.8 MM 2.5 MM & 2.8 MM 2.5 MM & 2.8 MM 2.5 MM & 3.5 MM
CUTTERS USED 1 – 4 1 – 4 1 – 4 1 – 4 1 – 4
CUTTER DRIVE 2 HP 2 HP 2 HP 3 HP 3 HP
COOLING WATER PUMP 2 HP 3 HP 3 HP 5 HP 7.5 HP
VIBRATION SCREEN &WATER BATH
VIBRATION MOTOR 1/4 HP × 2 1/3 HP × 2 1/2 HP × 2 1/2 HP × 2 1/2 HP × 4
VIBRATION SIZE 350 × 1700 MM 350 × 1700 MM 400 × 1800 MM 500 × 2000 MM 750 × 5000 MM
PELLET CONVEYOR>
BLOWER MOTOR 3 HP 3 HP 5 HP 5 HP 7.5 HP
CONVEYING CAPACITY 300 KG/HR 300 KG/HR 600 KG/HR 600 KG/HR 800 KG/HR
STORAGE TANK 1000 KG 1000 KG 1000 KG 1000 KG 1000 KG
OPTIONAL

SPECIFICATION FOR REFERENCE ONLY

WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
