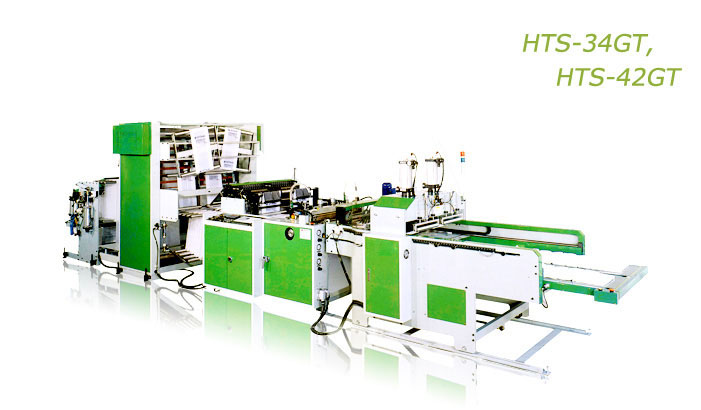

HTS-34GT, HTS-42GT

Bag Making Machines

MODEL HTS-34GT HTS-42GT
Min. bag length 350mm 350mm
Max. bag length 700mm 700mm
Min. bag width 180mm 180mm
Max. bag width 470mm 470mm
Max. film width 580mm 580mm
Sealing thickness 0.008~0.035mm 0.008~0.035mm
Output (cycle)/minute 300 cycle/min./line 300 cycle/min./line
Production/minute 140 meters/min 140 meters/min
Electrical requirement 16KW 16KW
Pneumatic requirement 7kgs/cm2,500L/min 9kgs/cm2,750L/min
Machine dimension (LxWxH) 6500X1600X2070mm 8200X2100X2070mm

SPECIFICATION FOR REFERENCE ONLY

WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
