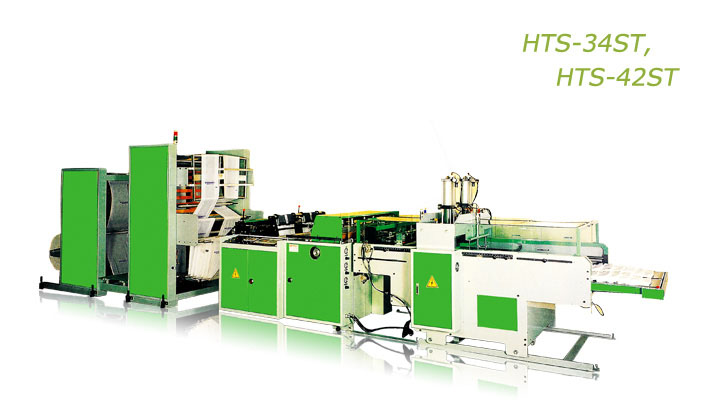

HTS-34ST, HTS-42ST

Bag Making Machines

MODEL HTS-34ST HTS-42ST
Min. width 180mm
180mm
Max. width 380mm
470mm
Min. length 380mm
380mm
Max. length 700mm
700mm
Max. width of film roll 1000mm
1200mm
Sealing thickness 0.008~0.035mm
0.008~0.035mm
Capacity (cycle/min.) 250~300 cycle/min./line
250~300 cycle/min./line
Power requirement 10KW
10KW
Pneumatic requirement 7kgs/cm2,500L/min
9kgs/cm2,750L/min
Machine dimension 8279X2100X2070mm
8279X2100X2070mm

SPECIFICATION FOR REFERENCE ONLY

WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
