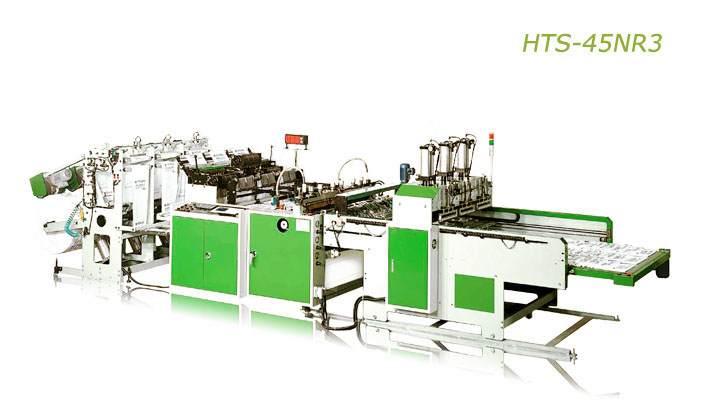

HTS-45NR3

Bag Making Machine

MODEL HTS-45NR3
Min. bag length 380mm(14.9″)
Max. bag length 700mm(25.6″)
Min. bag width 180mm(7″)
Max. bag width 330mm(13.8″)
Sealing thickness 0.008~0.035mm
Output (cycle)/minute 300 cycle/min./line
Production/minute 140 meters/min
Electrical requirement 10KW
Pneumatic requirement 9kgs/cm2,750L/min
Machine dimension (LxWxH) 6599X1600X2070mm

SPECIFICATION FOR REFERENCE ONLY

WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
