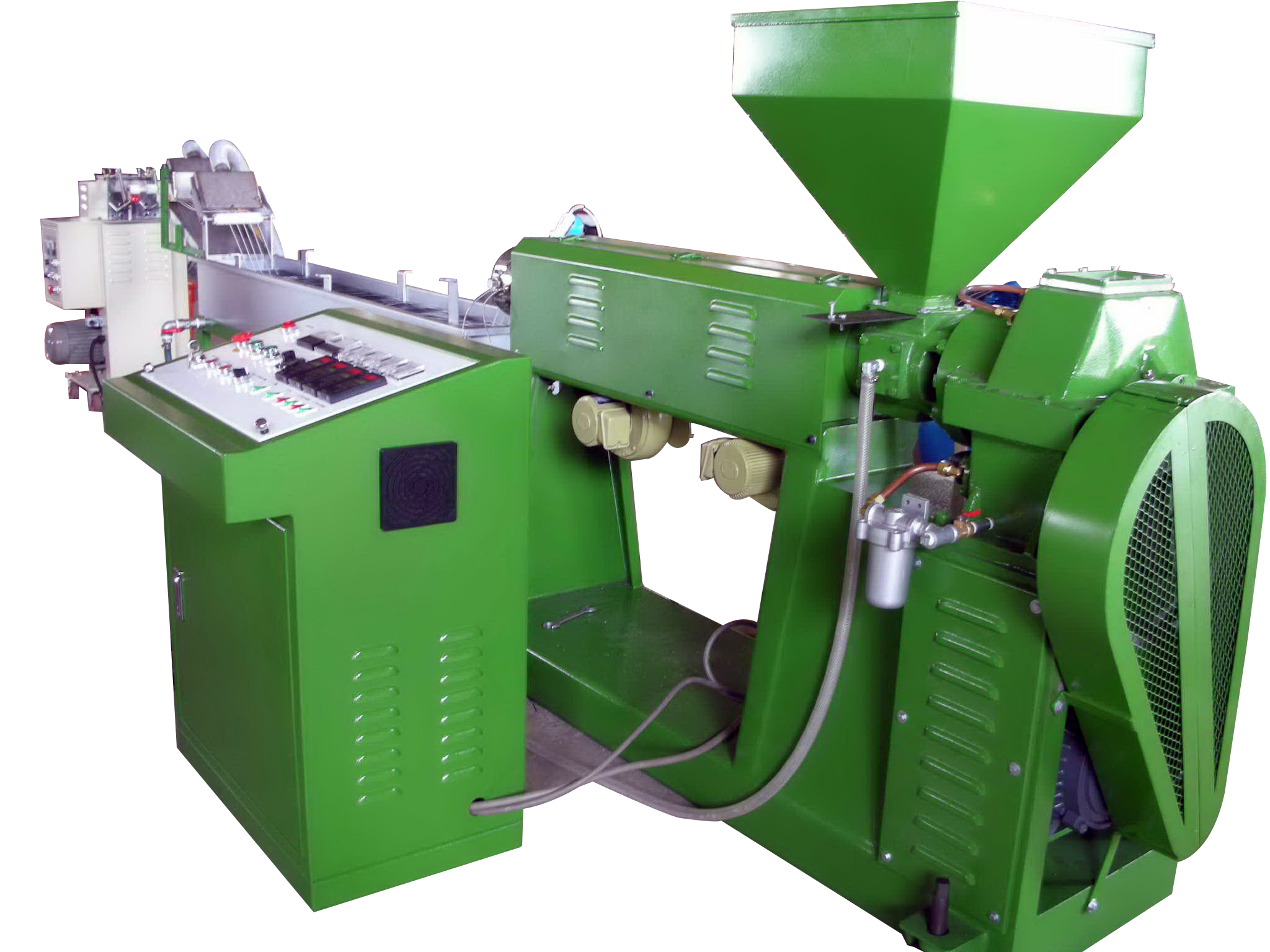

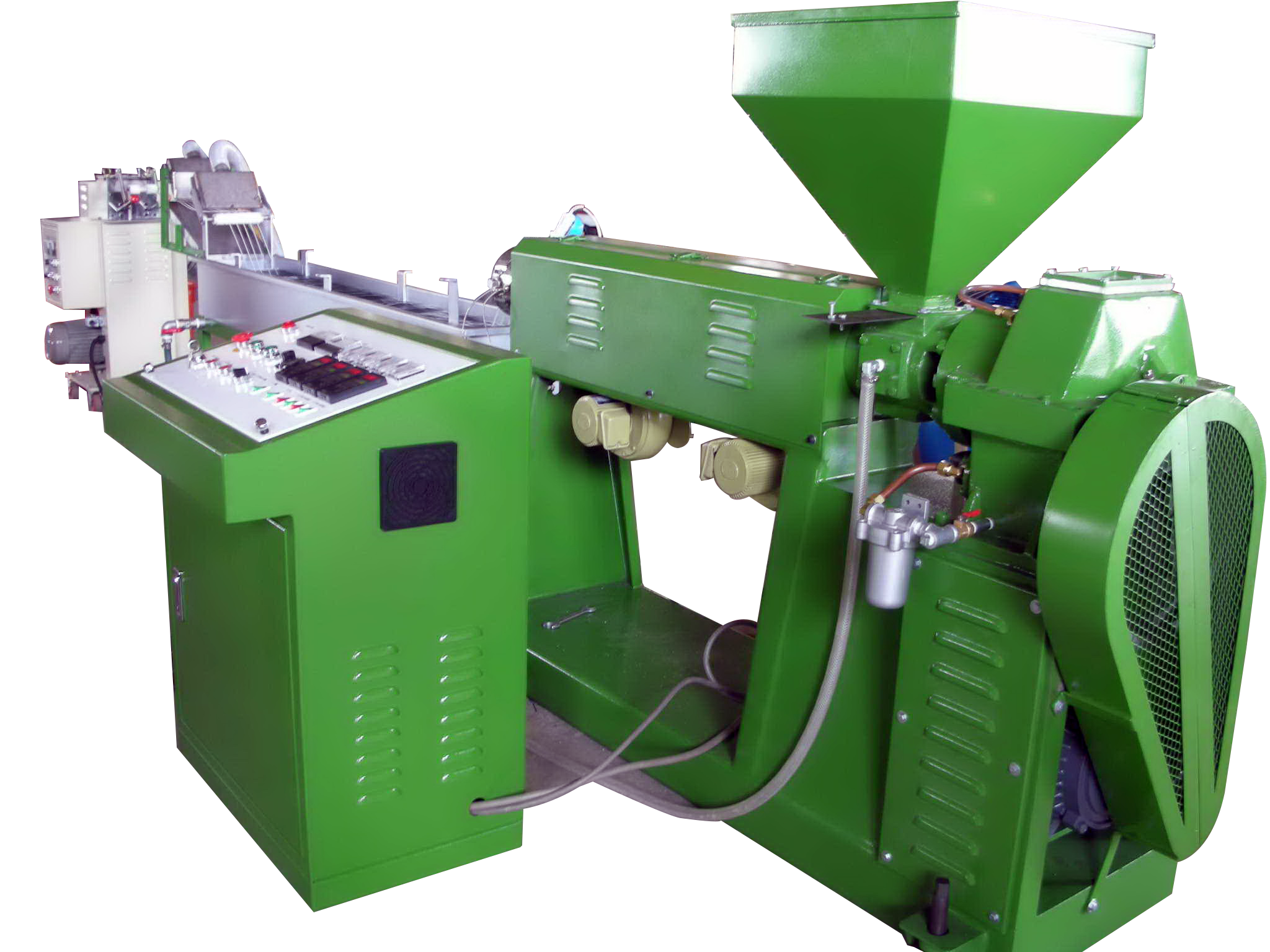

TRS Series

Plastic Extrusion and Recycling Line

Specifications

Model TRS-65V TR2-85V TR2-100V TRS-120V TRS-150V
Material LDPE,LLDPE,HDPE,PP,ABS,PS
Capacity 50-100 100-200 200-300 350-450 600-700
Side feeding device with screw & barrel x 1 set
Storage tank (litre)
Extruder
Screw F 65 85 100 120 150
Screw L/D 30/1 30/1 30/1 30/1 30/1
Screw material SACM645 nitrided, and hard chrome plated
Motor + inverter 40HP 75HP 100HP 150HP 250HP
Barrel thermo Zone 4 5 6 6 6
Barrel cooling 1/4 HP*4 1/4 HP*5 1/4 HP*6 1/4 HP*6 1/4 HP*6
Barrel material SACM645 nitrided, honed, hardness treatment
Screen changer ( Hydraulic slide type ) with pressure gauge
Die face cutting device – with 3pcs big knife
Pellet Blower motor 1HP 2HP 2HP 2HP 3HP
Options :
Water cooling tower Second stages extruder for heavy ink waste
Vacuum pump Quantitative feeder for masterbatch or solid chips
Metal detector with conveyer Double vented type barrel
Crusher + conveying blower Centrifuge dewatering drying device
Dual piston type screen changer ( larger filter area) Vibrating classifier

SPECIFICATION FOR REFERENCE ONLY

WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
