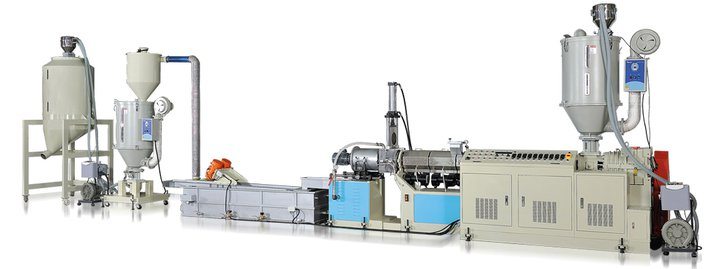

TR Series

Plastic Extrusion and Recycling Line

Specifications

MODEL TR-75V TR-120V TR-150V
MATERIAL LDPE , LLDPE , HDPE , PP , ABS , PS
EXTRUSION OUTPUT PE 140 – 170 KG/HR PE 400 – 600 KG/HR PE 600 – 800 KG/HR
EXTRUDER VENT(V) VENT(V) VENT(V)
SCREW 75 120 150
L/D 30 30 30
BARREL HEATING ZONE 4 6 6
DRIVING MOTOR 75 HP 120 HP 150 HP
HEATER CAPACITY 26 KW 32 KW 48 KW
SCREEN CHANGER HYDRAULIC SYSTEM WITH PRESSURE GAUGE NON-STOP CONTINUOUS TYPE
FILTER DIAMETRE 150 MM 250 MM 300 MM
DRIVING MOTOR 3 HP 5 HP 7.5 HP
DIE HEAD CUTTER DEVICE
HEATING ZONE 2 2 2
HEATING CAPACITY 4 KW 6 KW 8 KW
DIE HOLES 16 & 24 20 & 40 40 & 80
HOLE DIAMETER 2.5 MM & 2.8 MM 2.5 MM & 2.8 MM 2.5 MM & 2.8 MM
CUTTERS USED 1 – 4 1 – 4 1 – 4
CUTTER DRIVE 2 HP 2 HP 2 HP
COOLING WATER PUMP 2 HP 3 HP 3 HP
VIBRRATION SCREEN &WATER BATH
VIBRATION MOTOR 1/4 HP × 2 1/4 HP × 4 1/4 HP × 4
VIBRATION SIZE 350 × 1700 MM 350 × 1700 MM 400 × 1800 MM
PELLET CONVEYOR
BLOWER MOTOR 3 HP 5 HP 7.5 HP
CONVEYING CAPACITY 300 KG/HR 300 KG/HR 600 KG/HR
STORAGE TANK 1000 KG 1000 KG 1000 KG
OPTIONAL TWIN CYLINDER TYPE SCREEN CHANGER. VACUUM PUMP

SPECIFICATION FOR REFERENCE ONLY

WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
