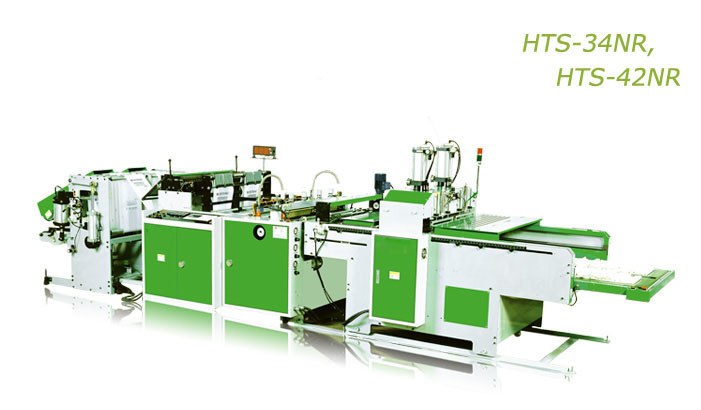

HTS-34NR, HTS-42NR

Bag Making Machines


MODEL HTS-34NR HTS-42NR
Min. bag length 350mm 350mm
Max. bag length 650mm 650mm
Min. bag width 180mm 180mm
Max. bag width 380mm 450mm
Sealing thickness 0.008~0.035mm 0.008~0.035mm
Output (cycle)/minute 300 cycle/min./line 300 cycle/min./line
Production/minute 140 meters/min 140 meters/min
Electrical requirement 14.50KW 14.50KW
Pneumatic requirement 7kgs/cm2,500L/min

7kgs/cm2,500L/min
Machine dimension (LxWxH) 6500X1600X2070mm 6500X1600X2070mm

SPECIFICATION FOR REFERENCE ONLY

WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
